10. API Integration (Detailed)

Without using a widget, the entire payment process is managed by the merchant backend. This method is recommended for integrations that require full control and customization.

10.1 API Payment Flow (Step-by-Step)

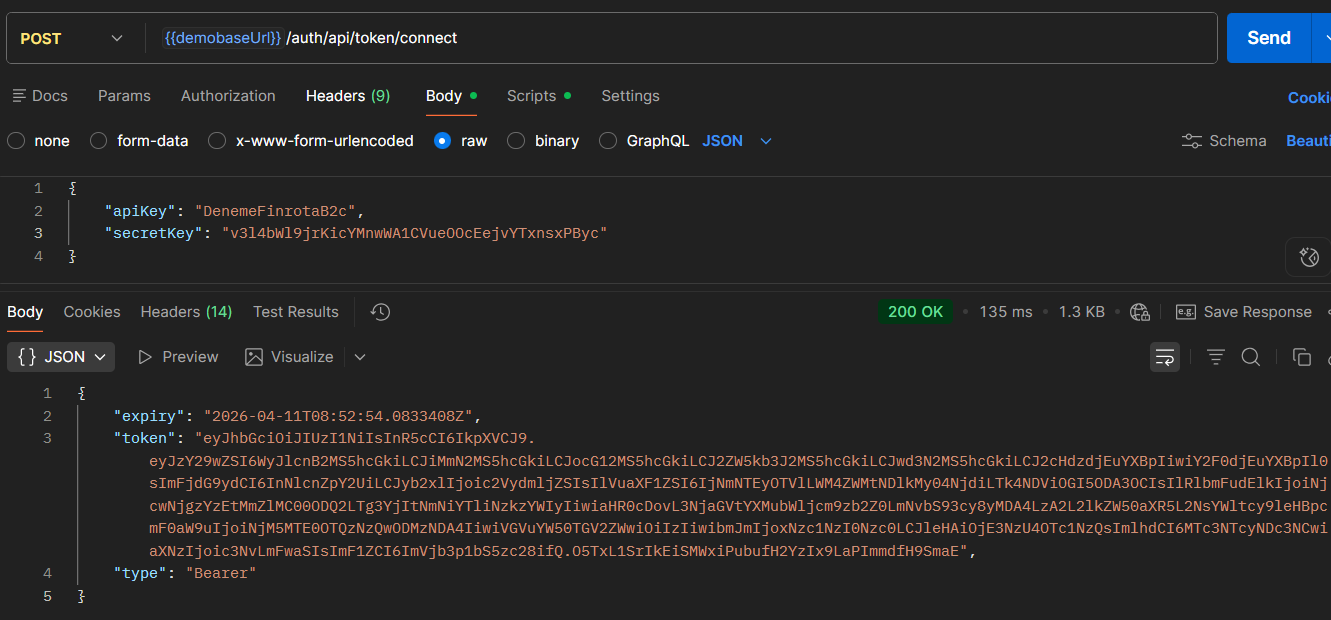

1 – AccessToken is Purchased

→ /auth/api/token/connect

2 – Installment and POS Information is Returned

→ /b2c/paymentOptions

3 – Payment Starts

→ /b2c/payment

4 – (Optional) 3D Process

• If use3D = true
• redirectTo redirects to the URL
• Bank verification is completed
• User returns to returnUrl

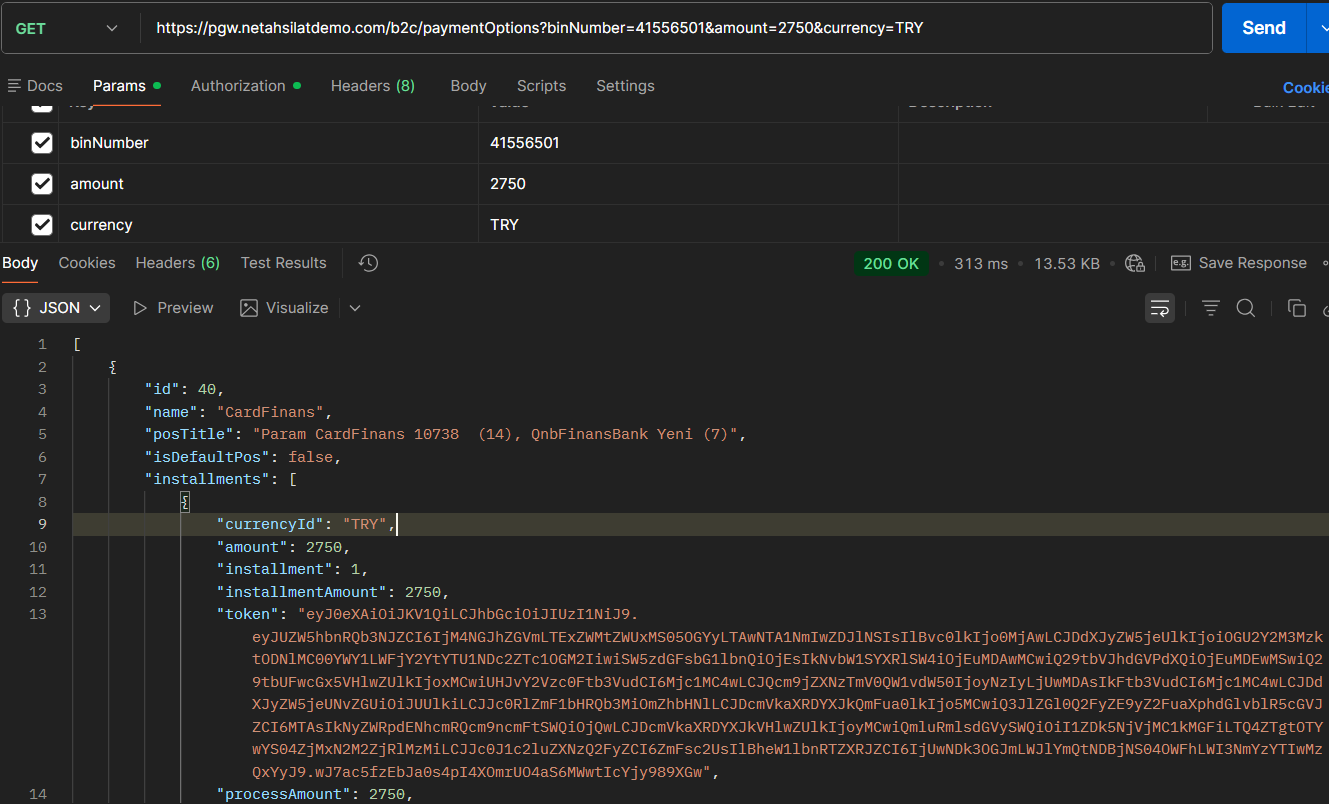

10.2 PaymentOptions

Endpoint: GET /b2c/paymentOptions

Header

Area	Type	Mandatory	Description
Proxy-Authorization	string	✔	Bearer {AccessToken}

Note: AccessToken is used in some implementations of API flow (difference from widget)

Query Parameters

Area	Type	Mandatory	Description
binNumber	string	✔	First 6-8 digits of the card
amount	decimal	✔	Transaction amount
currency	string	✔	Para birimi

Response Model

Root Object

Area	Type	Description
id	int	Kart program ID
name	string	Card program name
postTitle	string	POS description
isDefaultPos	boolean	Default POS information
installments	array	Installment options

installments Object

Area	Type	Description
currencyId	string	Para birimi
amount	decimal	Total transaction amount
installment int	Number of installments
installmentAmount	decimal	Amount per installment
token	string	InstallmentToken (kritik)
processAmount	decimal	Transaction amount
commRate	decimal	Commission rate
posId	int	POS ID
commApplyTypeId	int	Komisyon tipi

Critical Note

• token field (InstallmentToken) is required at checkout
• Without this token the /payment call will fail

10.3 Payment

Endpoint: POST /b2c/payment

Header

Area	Type	Mandatory	Description
Authorization	string	✔	Bearer {AccessToken}

Request Body

card Object

Area	Type	Mandatory	Description
cardNumber	string	✔	Card number
cardHolderName	string	✔	Name on card
cvv	string	✔	CVV
expMonth	int	✔	Son kullanma ay
expYear	int	✔	Expiry year

Root Areas

Area	Type	Mandatory	Description
card	object	✔	Kart bilgileri
returnUrl	string	✔	3D post redirect URL
clientReferenceCode	string	✔	Merchant order reference
use3D	boolean	✔	Using 3D Secure
installmentToken	string	✔	PaymentOptions’tan gelen token
customerIpAddress	string	✔	User IP address

Request Example

{
 "card": {
   "cardNumber": "4155650100416111",
   "cardHolderName": "Test Test",
   "cvv": "000",
   "expMonth": 12,
   "expYear": 2026
 },
 "returnUrl": "https://merchant.com",
 "clientReferenceCode": "ORDER123",
 "use3D": true,
 "installmentToken": "INSTALLMENT_TOKEN",
 "customerIpAddress": "78.190.57.187"
}

Response Model

Area	Type	Description
paymentType	string	RedirectUrl / DirectSale
redirectTo	string	3D redirect URL
orderId	string	Finrota transaction ID
clientReferenceCode	string	Merchant reference
success	boolean	Transaction result
error	string	Error message

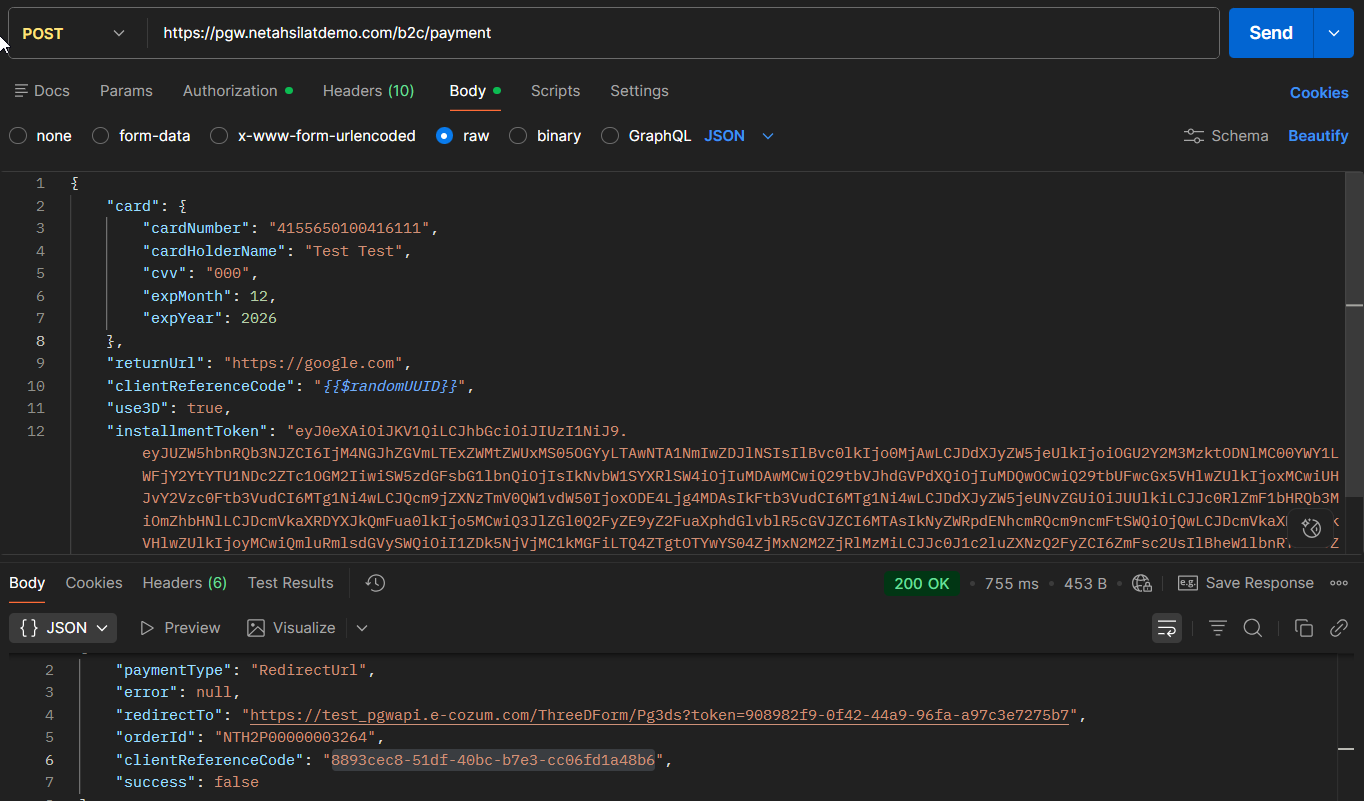

10.4 3D Secure Stream

Scenario

When use3D = true is sent:

Response

{
 "paymentType": "RedirectUrl",
 "redirectTo": "https://bank-3d-url",
 "success": false
}

Flow

1. Merchant backend → receives response
2. Frontend → redirects the user to redirectTo
3. User → verifies OTP at bank
4. Bank → redirects the user to returnUrl
5. Merchant → processes the result (success / failure)

Critical Points

• redirectTo must be opened in the frontend
• returnUrl endpoint must be idempotent
• Duplicate check should be done for the same transaction

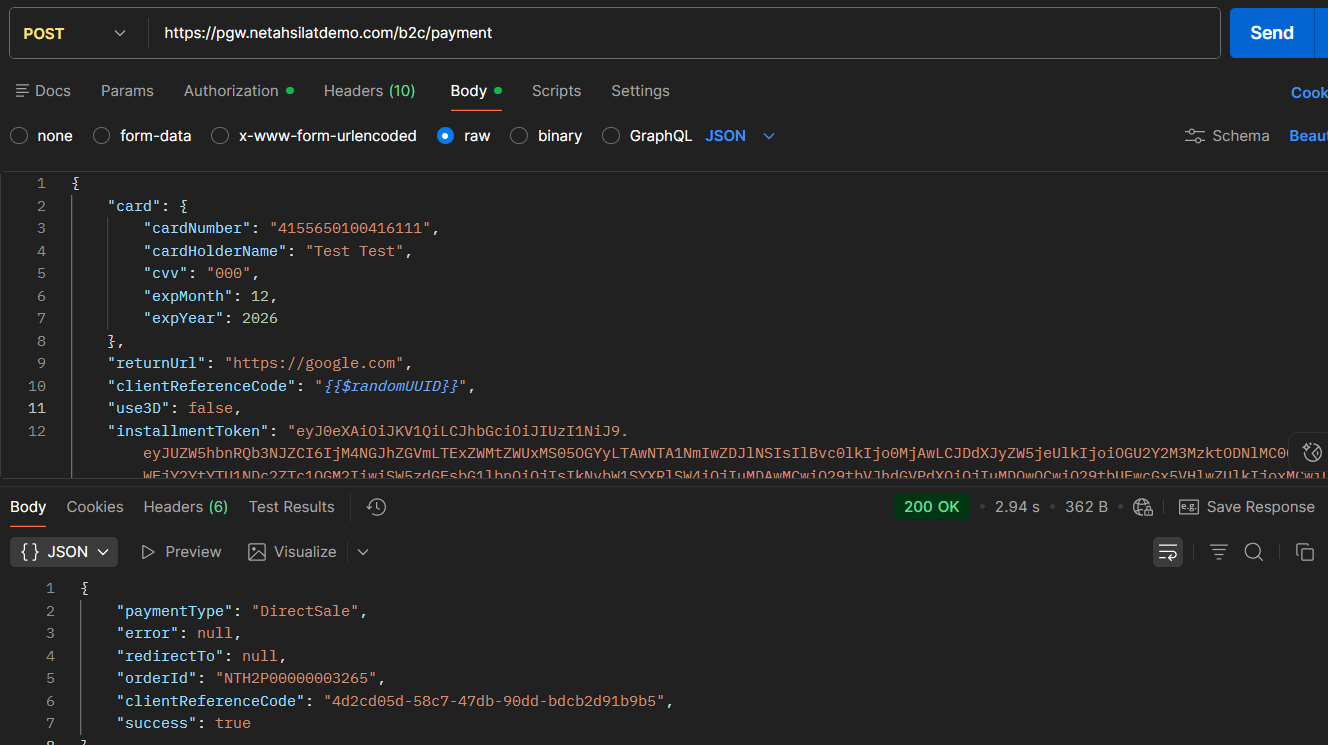

10.5 Direct Sale Flow

Response

{
 "paymentType": "DirectSale",
 "success": true
}

Flow

• Payment is completed instantly
• There are no additional redirects
• The result is taken from the response

10.6 Error Scenarios

Status	Description
401	Token invalid
400	Missing / faulty parameter
500	System error
success=false	Bank or payment error

10.7 API vs Widget Difference

Konu	API	Widget
Kart verisi	Backend	Frontend
PCI payload	Merchant	Finrota
UX	Merchant manages	Ready
Token	AccessToken	WidgetToken + AccessToken

14. API Payment Flow (Step-by-Step)

1 – AccessToken is Purchased

2 – Installment and POS Information is Returned

3 – Payment Starts

4 – (Optional) 3D Process

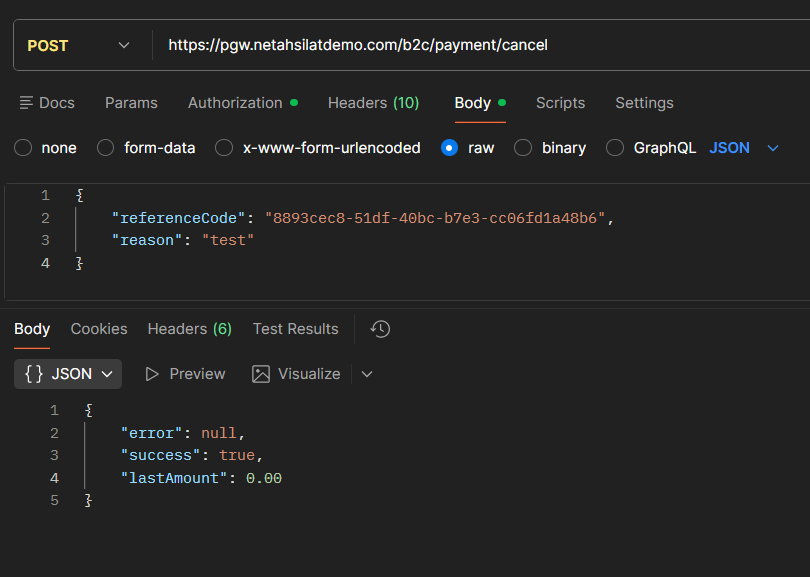

Payment Cancellation

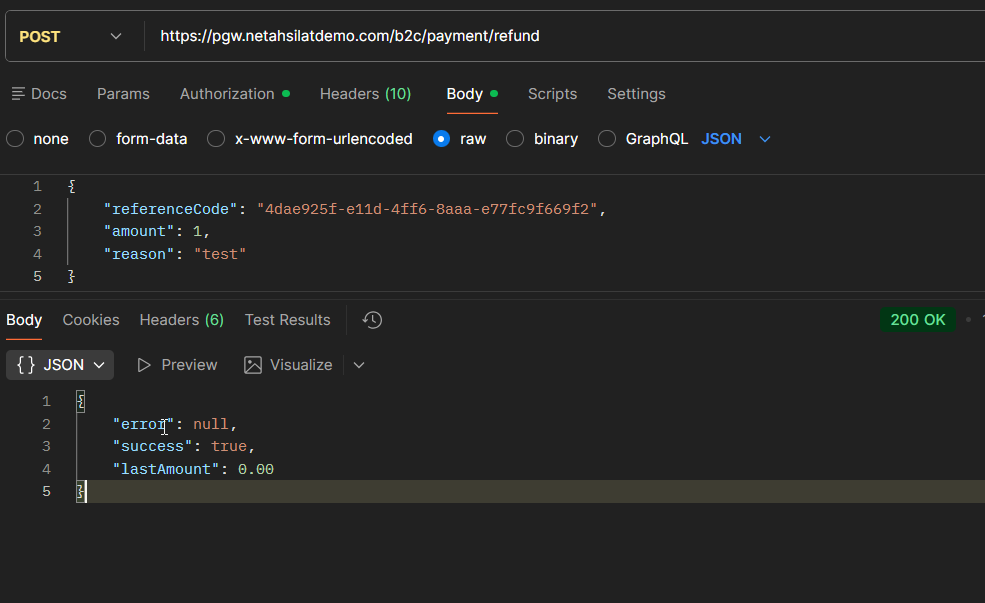

Payment Refund
