13. Screenshots of Widget Flow

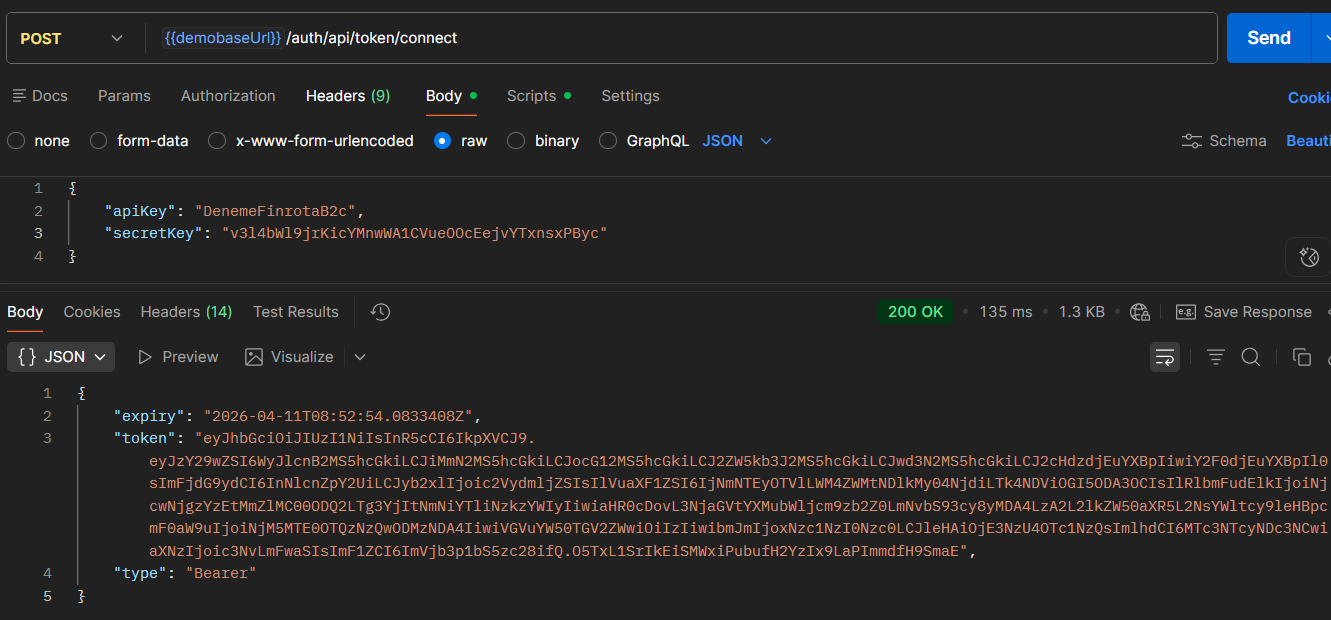

1 – AccessToken is Purchased (Backend)

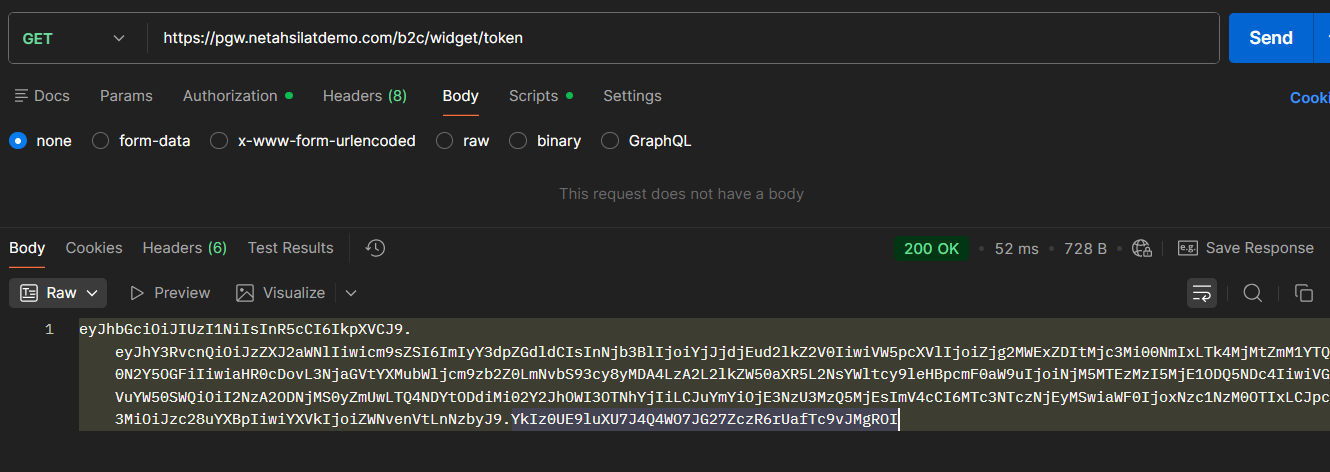

2 – WidgetToken is Generated (Backend)

3 – Widget is Transferred to Frontend

WidgetToken generated by the backend is transmitted to the frontend.

4 – Widget Starts (Frontend)

FinrotaPay.init({
   token: "WIDGET_TOKEN",
   amount: 2750,
   currency: "TRY",
   mode: "modal",
   containerId: "payment-container",
   environment: "prod"
});

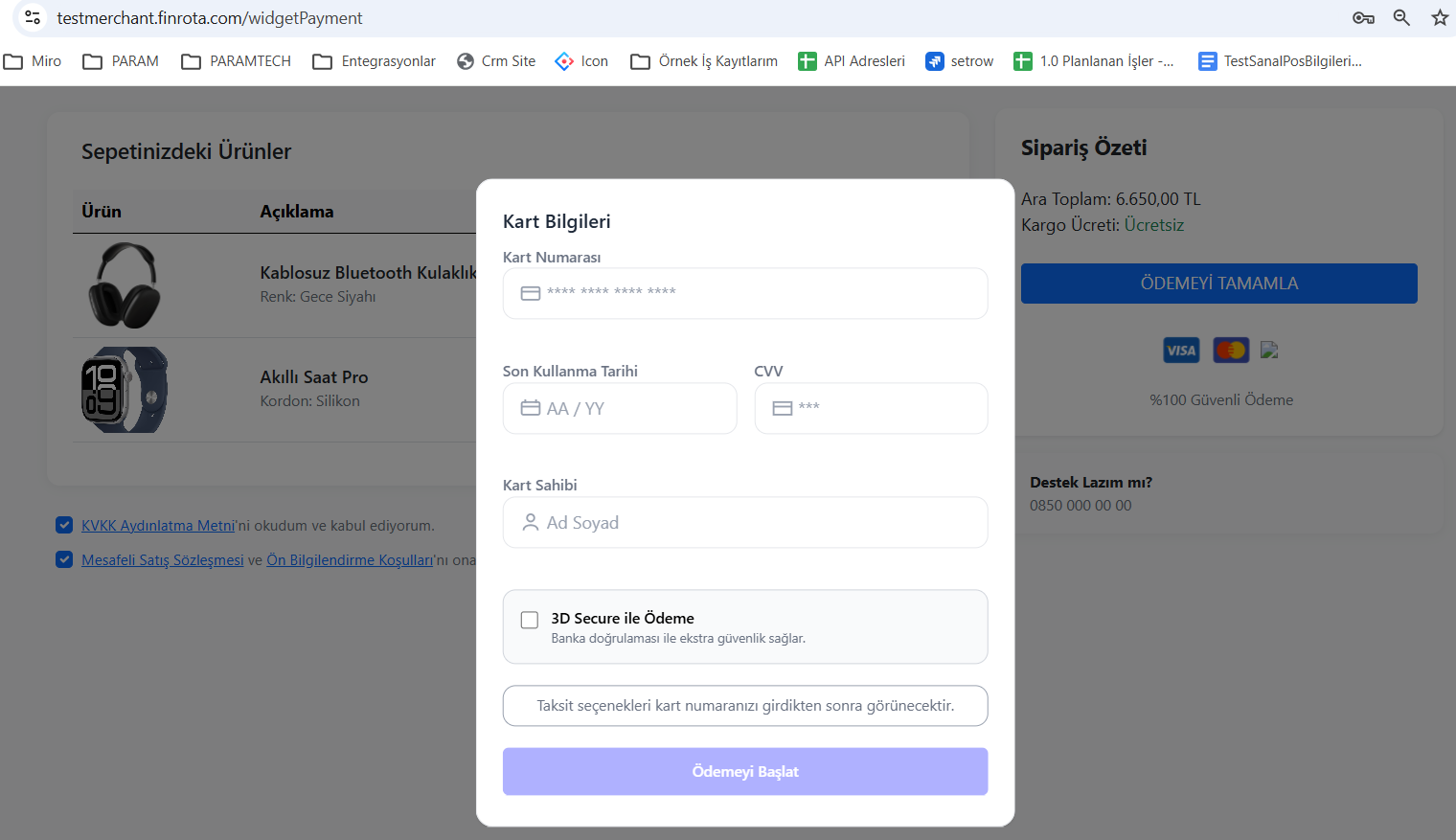

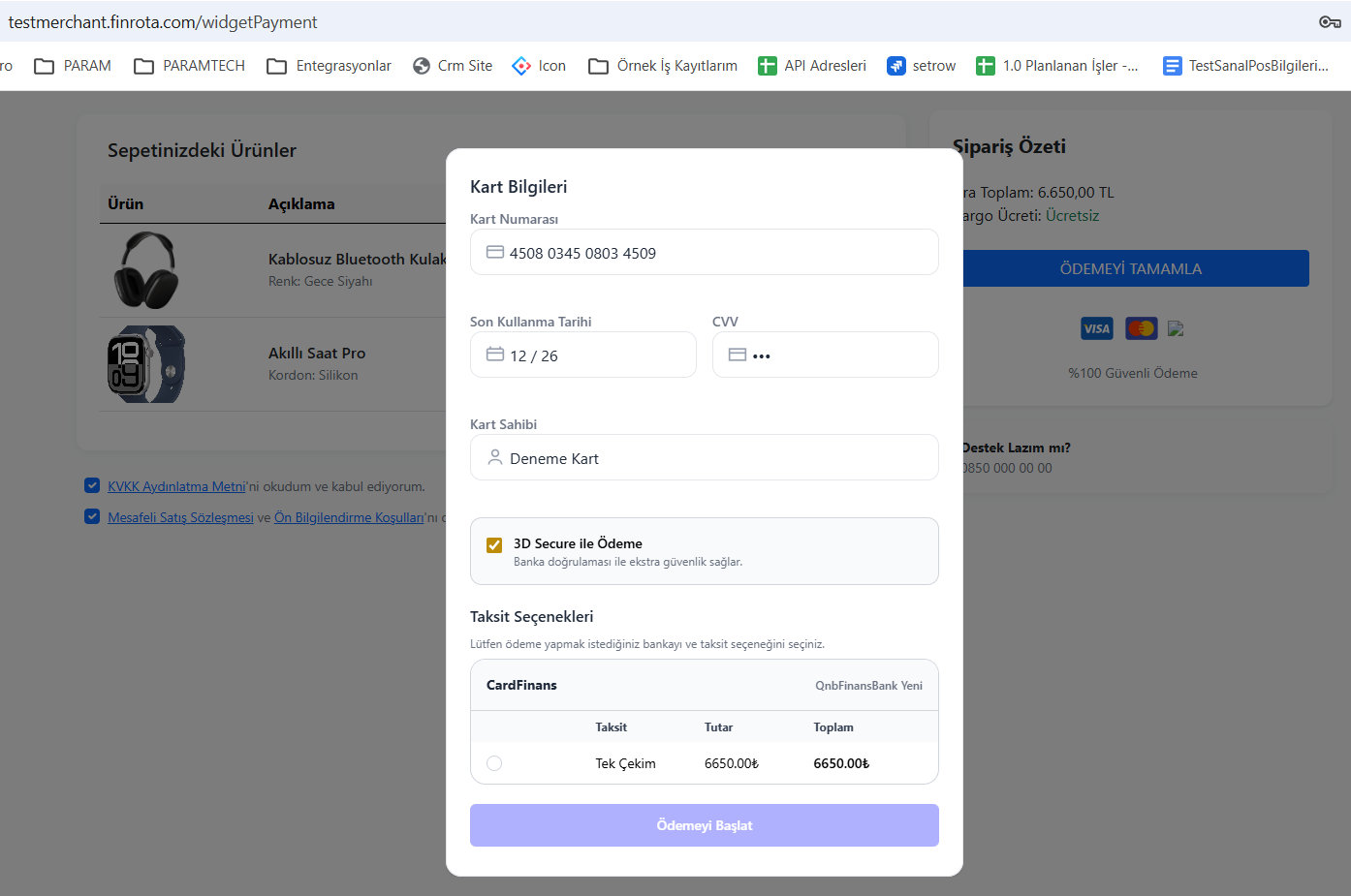

5 – User Enters Card Information (Widget UI)

6 – Widget PreparePayment Call (Internal)

widget when user presses payment button

• POST /b2c/widget/preparePayment

makes the call and

• Card information
• Selected installment (installmentToken)

forwarded to Finrota

As a result of this step → prepareToken is created

7 – onSuccess Event is Triggered (Frontend)

onSuccess(data) {

// payment ready

}

this event

• Does not mean that the payment has been completed
• Only indicates that the payment request is ready

8 – Request to Merchant Backend

The frontend sends the following information to its backend:

Area	Description
prepareToken	Token created for payment
amount	Transaction amount
other metadata	order information etc.

9 – Payment Endpoint Called (Backend)

Merchant backend

• POST /b2c/widget/payment
• Authorization: Bearer {AccessToken}

makes the call

10 – Payment Result

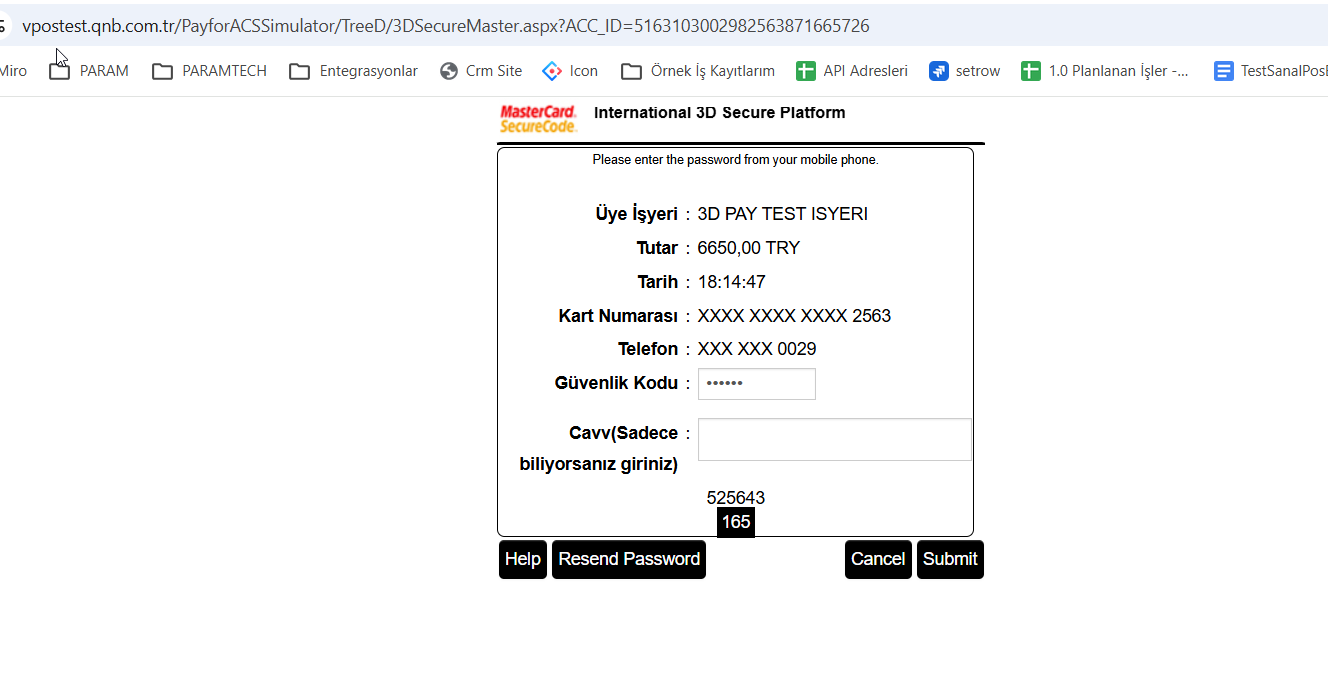

3D Secure Scenario

Response

{

"paymentType": "RedirectUrl",

"redirectTo": "3D\_URL"

}

Flow

4. Frontend → redirects the user
5. Bank → OTP verification

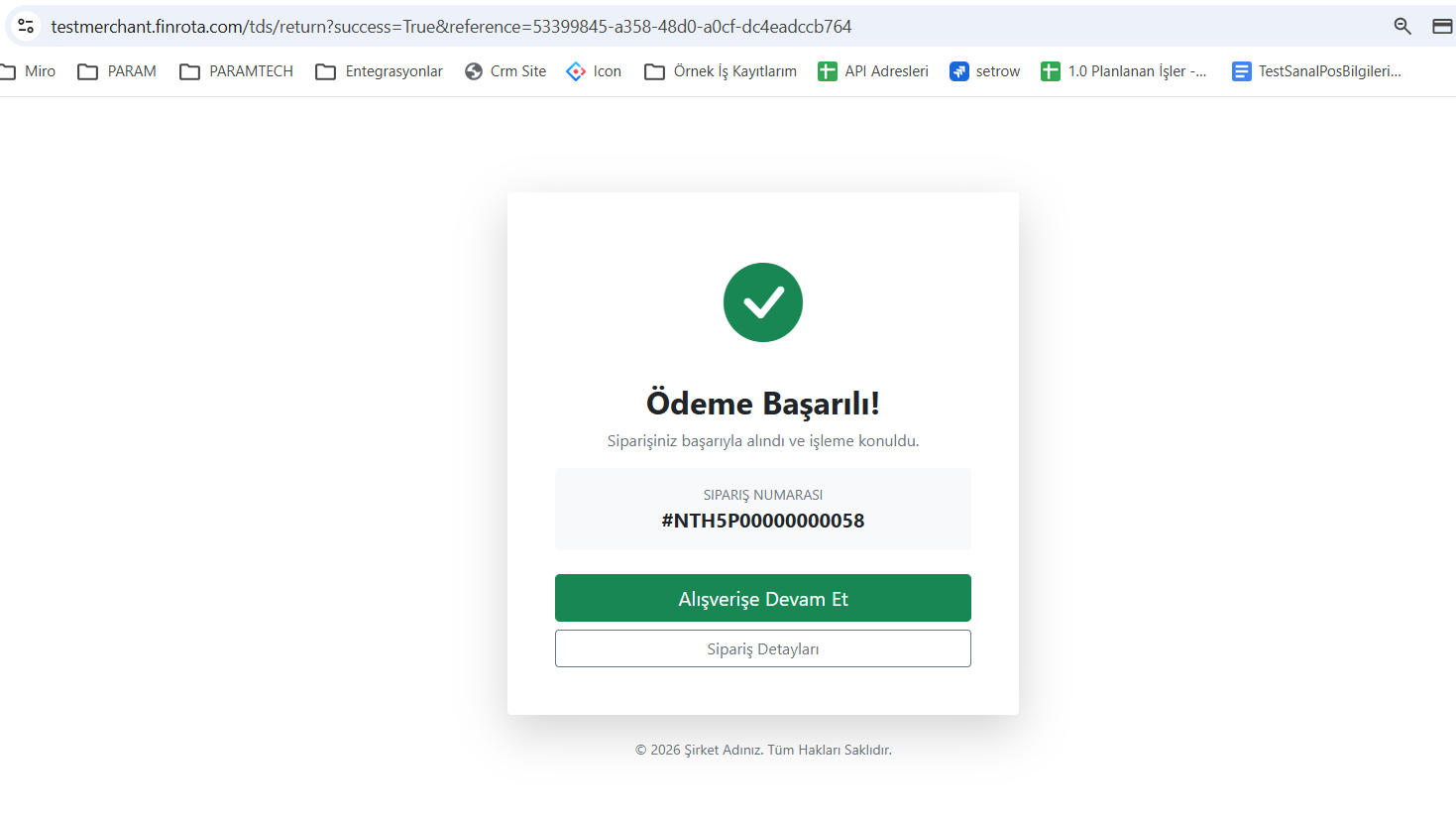

6. User → returns to returnUrl

Scenario without 3D

{

"paymentType": "DirectSale",

"success": true

}

→ Payment is completed directly
